Reverend Charger HB

A modern rock dynamo that combines humbucker power with bolt-on scale clarity. Put together big and clear rock tones, warm and round cleans, and even some percussive twang and girth, and you have a guitar that takes you to the edge.

CUSTOM PICKUPS
We design our own proprietary custom pickups, to achieve the best tonal match with our instruments. Reverend pickups are also specifically designed for each position, for balanced volume and tone when switching.

ROASTED MAPLE NECK
Roasted Maple is heat treated at over 300° F to remove sugars, moisture, and impurities. This maple is lighter, more stable, and has a beautiful caramel color. The result is an exceptional maple neck that will require less seasonal adjustment, and boasts a rich vintage look!

KORINA BODY
Korina (aka White Limba) is a medium-light weight wood, highly prized for consistency and tonal qualities. Often found in boutique and vintage instruments, all Reverends feature Korina bodies. A highly resonant wood, Korina is a key factor to producing our lively, responsive instruments that are rich in harmonics.

BASS CONTOUR
This passive bass roll-off is great for tightening up the low end, or re-voicing the pickups. It can make a humbucker sound like a single-coil, or give a P-90 that classic twang. Variable pickup voicing at your fingertips!

PIN-LOCK TUNERS
A thumbwheel under the tuner pushes a steel pin up through the post, locking the string in place for exceptional tuning stability and super-fast string changes.

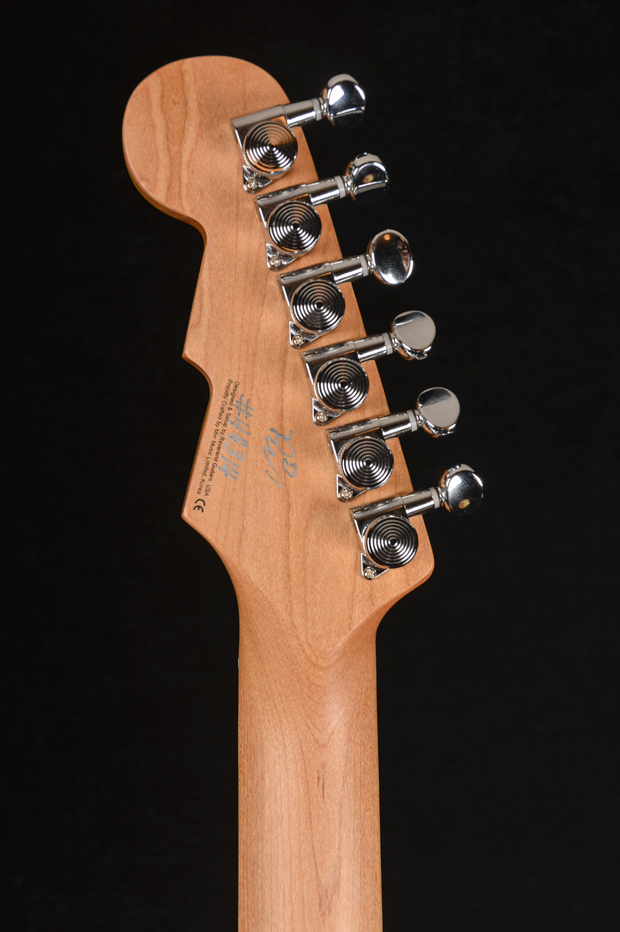

INITIALED HEADSTOCK
Every Reverend is hand initialed and serial numbered on the back of the headstock by one of our highly skilled technicians who sets up, inspects, and tests every instrument.

CUSTOM DOME KNOBS
Our proprietary knobs feature a lower profile which is less likely to be accidentally hit by the player’s hand, and the white dot lets you easily see where your knob rotation is set.

BONEITE NUT
We use “Boneite,” a synthetic bone nut, that is more consistent than natural bone, on all Reverend instruments. It reduces friction, allowing the strings to slide through the nut slots smoothly, improving tuning stability.

TRIPLE-TREE STRING TREE
This patent-pending string tree has an extended bar to hold down three strings at a time with just one tree, eliminating G string buzz in the nut slot.
A modern rock dynamo that combines humbucker power with bolt-on scale clarity. Put together big and clear rock tones, warm and round cleans, and even some percussive twang and girth, and you have a guitar that takes you to the edge.

DUAL-ACTION TRUSS ROD
Our dual action rod adjusts in both directions, allowing back bow or forward bow. This assures correct adjustment range is possible regardless of string tension, extreme climate conditions, or the effects of long term aging. It’s also located at the headstock for easy access.

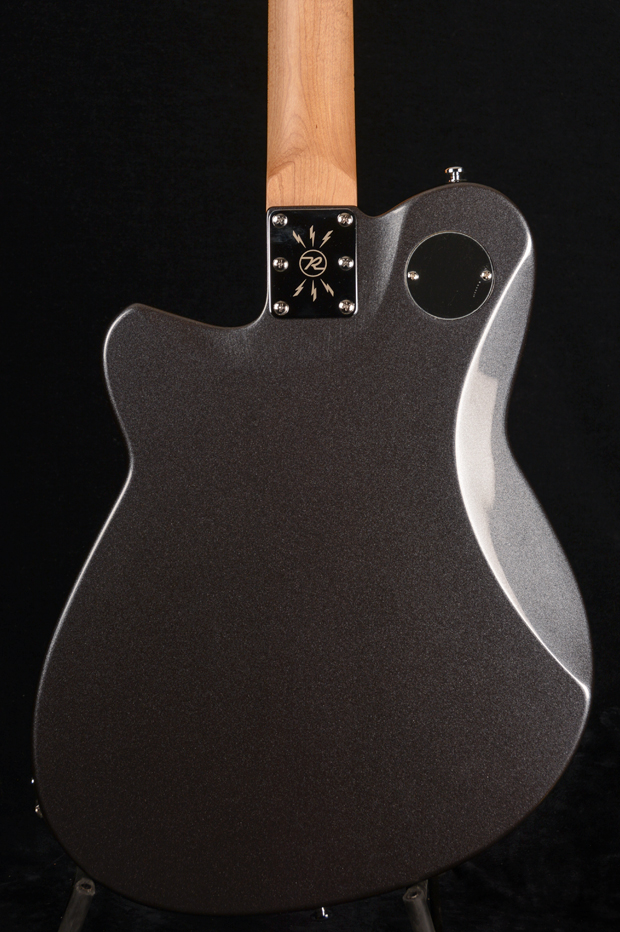

SIX-BOLT NECK PLATE
Two extra bolts increase mounting pressure of the neck by fifty percent. This makes a stronger neck connection, which improves sustain, tuning stability, and neck alignment.

10% POLY CAPS
We use caps with a +-10% rating, while a typical cap is +-20%. Our caps are made to tighter specifications, so they’re more consistent. Made of polyester, they’re also longer lasting, and less affected by temperature than cheaper ceramic caps. Typically used in expensive boutique guitars.

CUSTOM JACK PLATE
Our proprietary jack plate features four mounting screws, instead of two. The extra screws prevent the plate from tearing out of the body. Made of steel for durability, the laser etched logo adds an extra touch of class!

PURE TONE JACK
All Reverends use an upgraded jack by Pure Tone Technologies. A standard jack has single contacts, but the Pure Tone jack has dual contacts for improved grip, audio signal and reliability. The most dependable guitar jack available.

TREBLE BLEED CIRCUIT
All Reverend guitars have a treble bleed circuit, preserving the treble when you roll back the volume control. When you roll back a standard volume control, the tone loses treble and becomes dull sounding. Now you can turn down and still sound great!

10% POTS
We use Alpha control pots with a +-10% rating. While a typical pot is +-20%, our pots are built to tighter specifications, making them more consistent. Typically used in expensive boutique guitars, but standard issue in all Reverends.

SPECIFICATIONS

BODY: Korina Solidbody
PICKUPS: HA5 Bridge, HA5 Neck
BRIDGE: TOM with Stop Tail
NECK: Roasted Maple
SCALE: 25 1/2″
NECK PROFILE: Medium Oval
FINGERBOARD: Pau Ferro or Roasted Maple 12″ Radius
FRETS: 22 – 0.110″W x 0.050″H
TRUSS ROD: Dual Action – Headstock Access
TUNERS: Reverend Pin-Lock
NUT: 43mm Width – Boneite
CONTROLS: Volume, Tone, Bass Contour, 3-Way
